[STORM XT52] Overview

Overview of STORM XT52

The STORM XT52 features a brand-new BLAIR light engine design, offering an expanded

CCT range (2500K–10000K). In CCT mode, it supports both Daylight Mode and Blackbody

Curve Mode, along with G/M adjustment. It also supports HSIC+ and xy color output, FX

lighting effects and a variety of professional control protocols, including DMX512-A/RDM,

LumenRadio CRMX, Art-Net, sACN and Aputure’s Sidus BT.

With its IP65-rated dust and water resistance and Aputure’s proprietary electronic mount

design, the STORM XT52 delivers a comprehensive and professional lighting solution. It

is compatible with a new set of electronic-mount accessories including the motorized

CF16 Fresnel, PB70 Parallel Beam Reflector, three beam angle-specific reflectors (narrow,

medium, wide), as well as the electronic-mount Light Dome 150 and Lantern 120 soft light

modifiers—empowering you with true creative freedom.

Components List

Before using this product, please check that all of the following items are included in the

package. If any are missing, please contact your dealer.

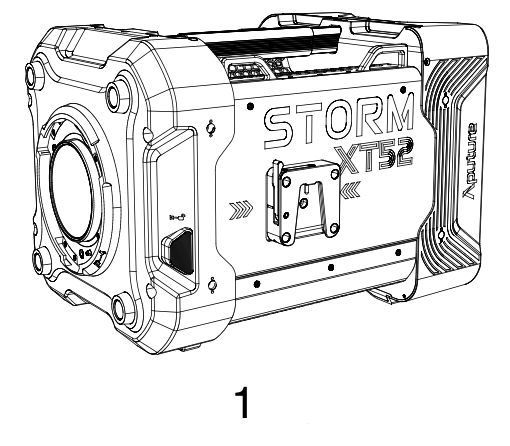

1. STORM XT52 Lamp Head x1

2. STORM XT52 Control Box x1

3. STORM XT52 Removable yoke x1

4. Lighting Clamp x1

5. STORM XT52 Medium Angle Reflector x1

6. STORM XT52 AC Power Cable-1m x1

7. STORM XT52 Aputure Mount Protection Cover x1

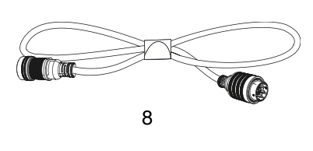

8. Extendable Head Cable-7.5m x1
